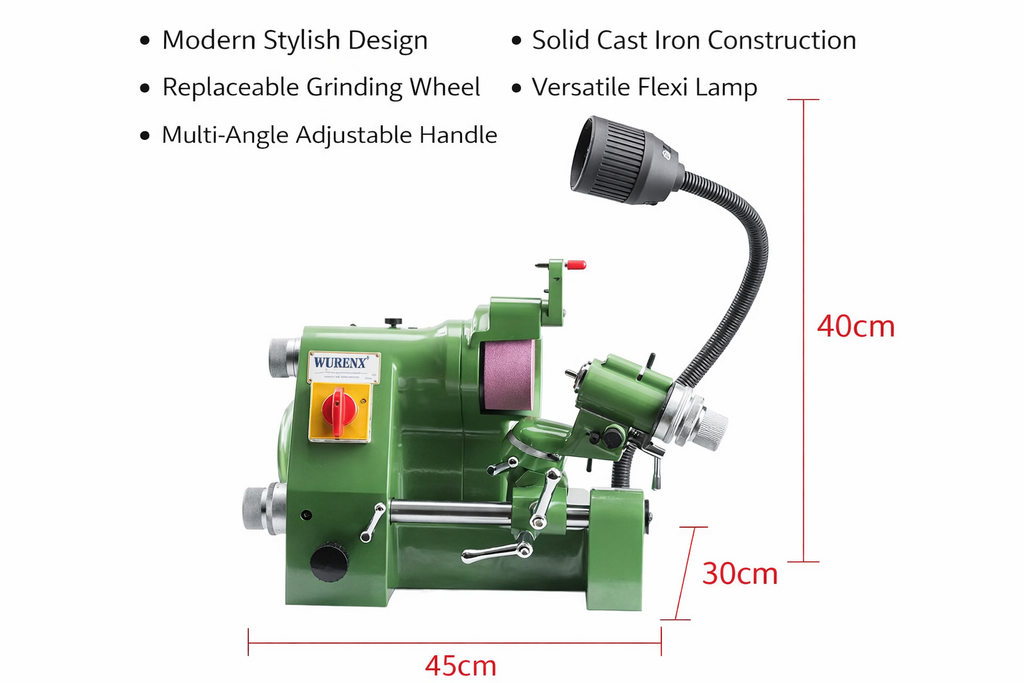

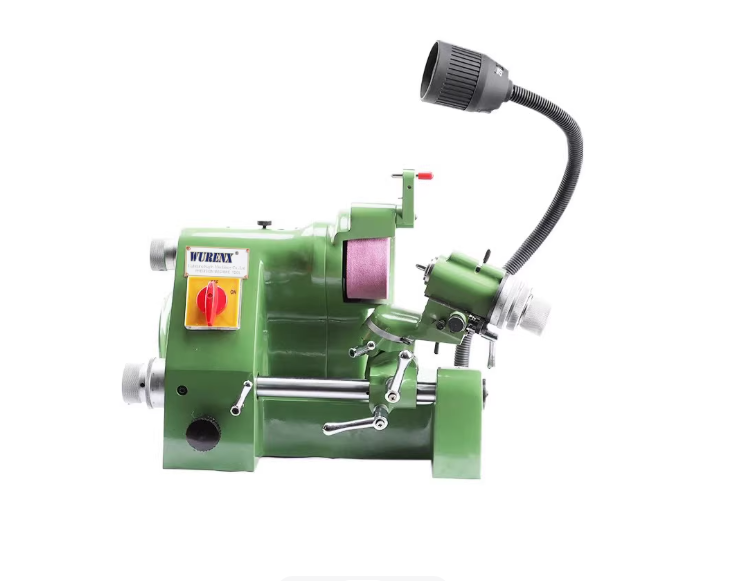

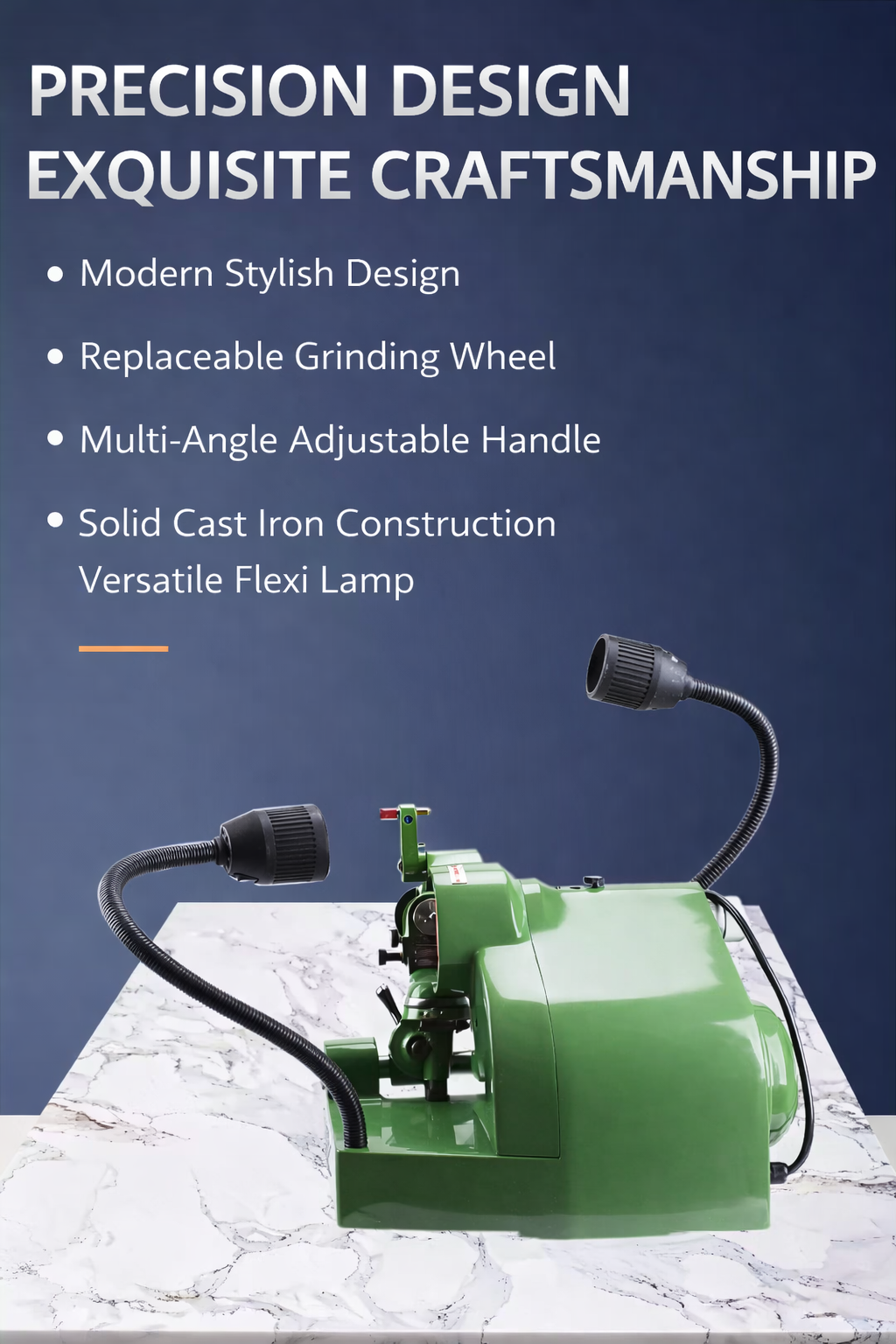

U2 Universal Cutter Grinder

The U2 Universal Cutter Grinder is a highly versatile and precise tool grinding machine designed for sharpening and reconditioning various cutting tools. It is widely used in CNC machining workshops, tool rooms, mold manufacturing, and metalworking industries.

1. Core Concept and Features

The U2 Grinder is primarily an economical, flexible solution for manual tool sharpening.

• Multifaceted Geometry: The core strength lies in its Universal Index Head. This component allows for multiple degrees of freedom, enabling precise setup for taper angles, relief angles (back clearance), negative angles, circular arcs, and multi-sided shapes.

• Precision Indexing: The index head typically features 24 distinct positions (15-degree increments) or 24-position indexing, allowing for the precise grinding of polygonal tools, such as square, triangular, or hexagonal punches and cutters. It supports free rotation of 360° horizontally and 180° vertically.

• HSS and Carbide Capability: It is suitable for sharpening tools made from both High-Speed Steel (HSS) and Carbide (Tungsten Steel). Operators must use the appropriate grinding wheel type (e.g., corundum for HSS, diamond/CBN for carbide).

2. Primary Applications and Tool Types

The U2 Grinder is a workhorse for customizing and restoring carving knives, engraving bits, mills, and drills.

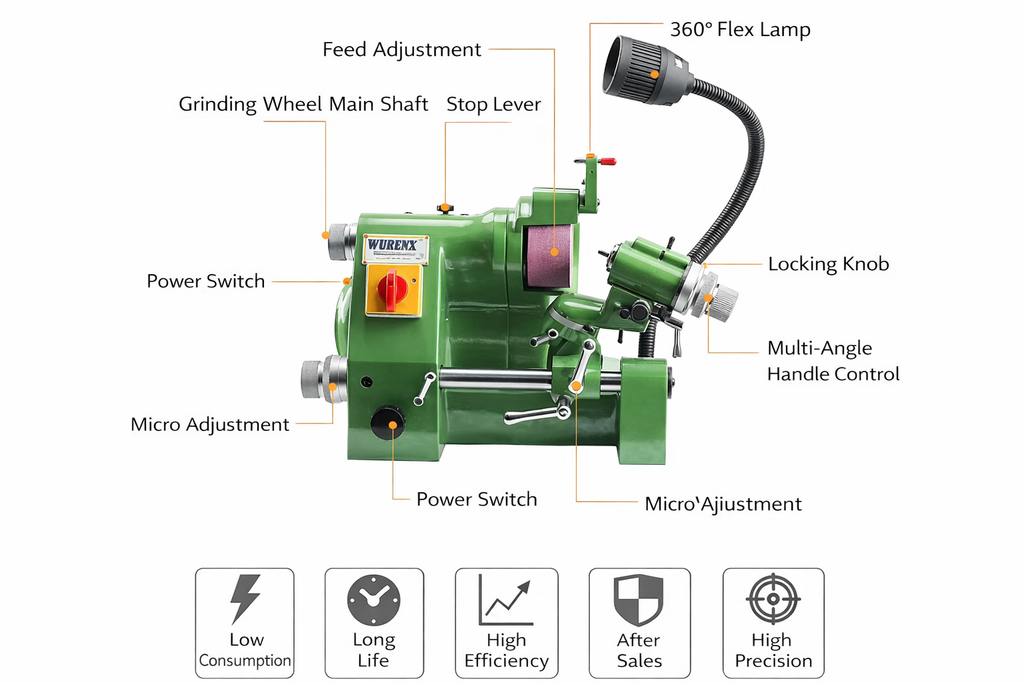

3. Key Components

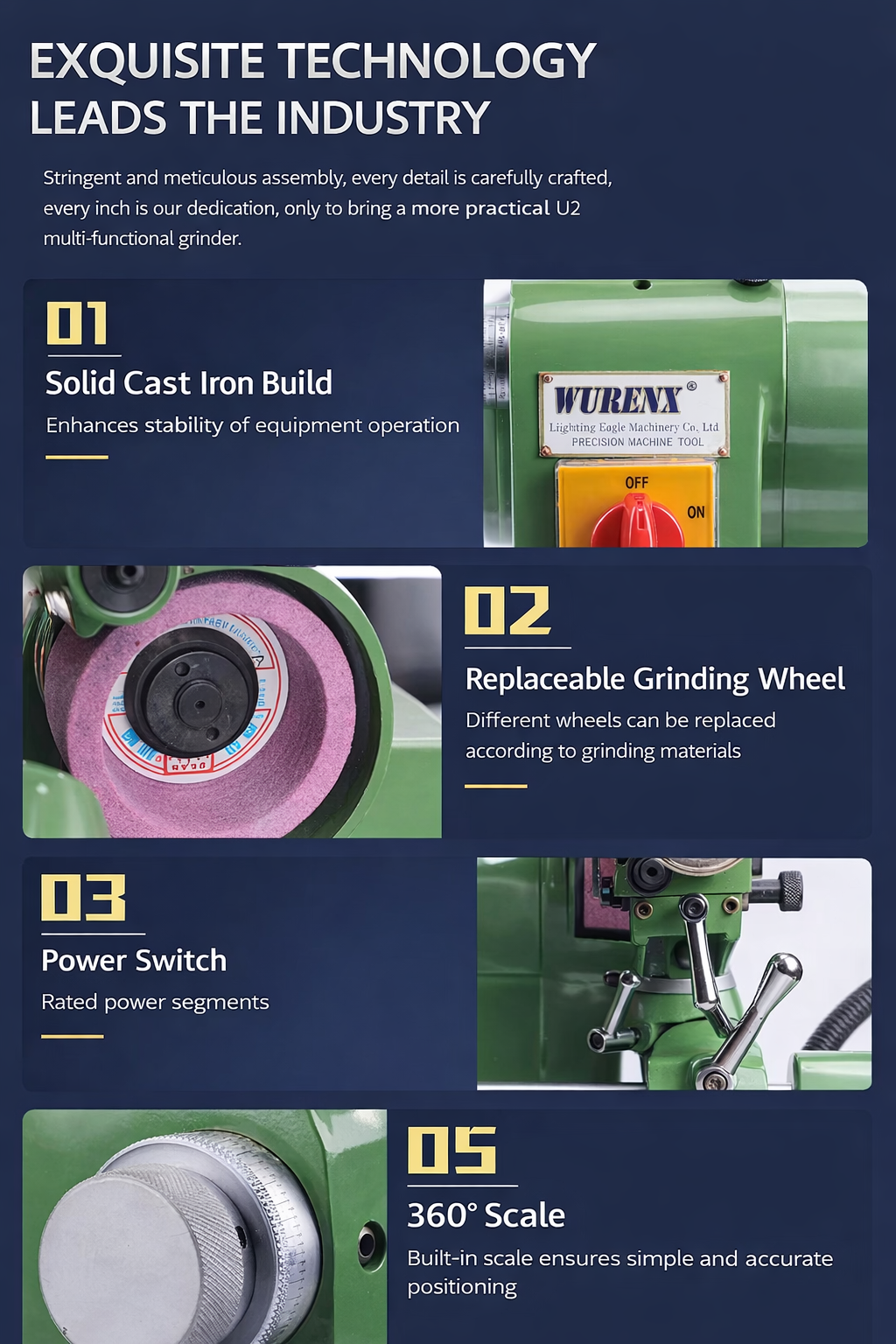

• Main Body/Base: Made of heavy-duty cast iron to provide stability and reduce vibration.

• Grinding Spindle: Driven by a motor, usually running at high speed (e.g., 3600 to 5200 RPM) to achieve a smooth finish.

• Universal Index Head: The vital heart of the machine, which holds the tool and provides precise angular adjustments.

• X/Y/Z Axial Slides: Precision slides with micro-feed mechanisms used to position the tool relative to the grinding wheel.

• Grinding Wheel: Typically uses a cup-shaped wheel (e.g., $100 \times 50 \times 20$ mm).

4. Accessories: Standard vs. Optional

The versatility of the U2 depends entirely on its accessories. Users must clarify which items are included in a standard package from the manufacturer.

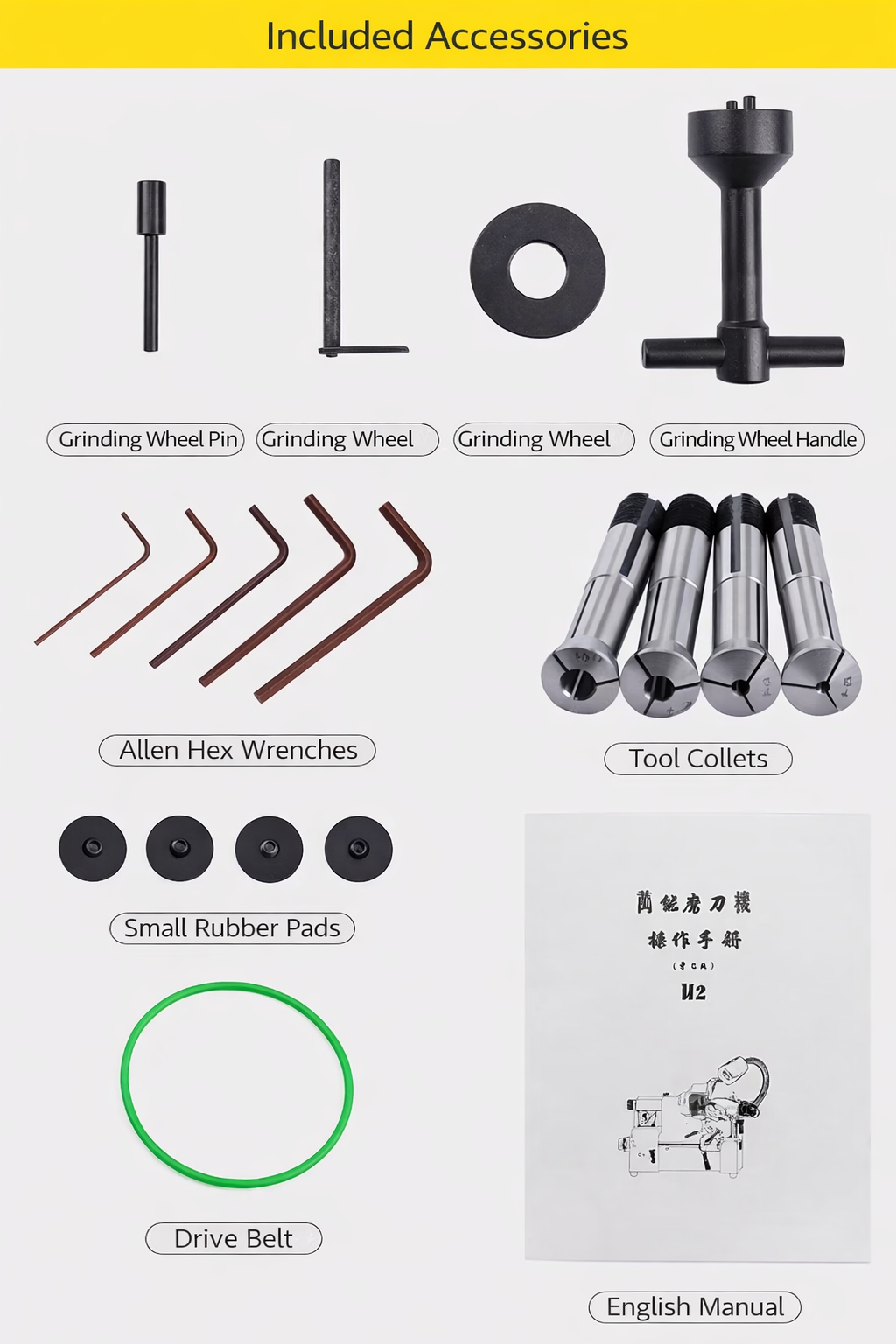

Common Standard Accessories (Included):

• Diamond Wheel Dresser (for traditional corundum wheels)

• Wheel Flange & Wrench Set

• Initial Grinding Wheel

• Collets (e.g., 5-piece set: 4, 6, 8, 10, 12mm)

• Aligning Finger/Gauge

Key Optional Accessories (Sold Separately):

• Twist Drill Grinding Attachment: Specialized holder for sharpening twist drills, usually within a certain diameter range (e.g., 3-8mm).

• End Mill Grinding Attachment: A fixture that facilitates grinding the helical flutes of end mills.

• Lathe Tool Grinding Attachment: A fixture for holding turning tools at various angles.

• Extra/Large Capacity Collets: Such as 5C collet adapters for larger diameters (up to 20 or 25mm).

5. General Technical Specifications (Reference)

Note: Specifications vary slightly by manufacturer (e.g., Vertex, Meiri, PEIPING, etc.).

• Max. Collet Capacity: 16mm – 20mm (standard, up to 25mm with optional adapters).

• Max. Grinding Diameter: 25mm.

• Spindle Speed: 6000R.P.M.

• Grinding Wheel Size: $100 \times 50 \times 20$ mm (typical cup wheel).

• Motor Power: 0.375KW.

• Net Weight: 45 kg.

6. Difference Between U2 and U3 Grinders

The U3 is generally considered an upscale or high-capacity version of the U2.

• Collet/Clamping Capacity: U3 grinders often have larger standard clamping capabilities (e.g., maximum $\Phi25\text{mm}$ or use standard 5C collets).

• Size and Power: U3 machines tend to have slightly larger motors and more robust bodies.

• Indexing Precision: Some U3 models may offer more refined or convenient indexing mechanisms.
